➡️ 向量（Vector）#

#bs.vector:help

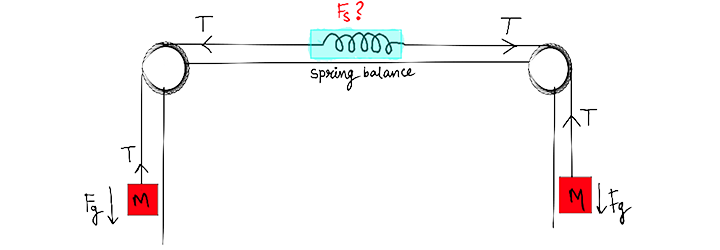

向量是管理运动、力和……嗯……做物理的基础且强大的工具！

观看演示

“有了向量，物理学找到了一种优美的语言。”

—理查德·费曼（Richard Feynman）

🔧 函数#

你可以在下方找到此模块中的所有可用函数。

绝对值最大#

#bs.vector:abs_max

获取距离零最远的数，不考虑符号。

输入:: 分数 $vector.abs_max.[0,1,2] bs.in：向量分量。
输出:: 返回值 | 分数 $vector.abs_max bs.out：离0最远的分量值。

示例：我想获取向量(1000, 2000, 3000)的最大分量：

# Define the vector
scoreboard players set $vector.abs_max.0 bs.in 1000
scoreboard players set $vector.abs_max.1 bs.in 2000
scoreboard players set $vector.abs_max.2 bs.in 3000

# Get the max component
function #bs.vector:abs_max

# Display the result
tellraw @a [{"text":" Max component: ","color":"dark_gray"},{"score":{"name":"$vector.abs_max","objective":"bs.out"},"color":"gold"}]

制作人员：Aksiome、Leirof

绝对值最小#

#bs.vector:abs_min

获取离零最近的数，不考虑符号。

输入:: 分数 $vector.abs_min.[0,1,2] bs.in：向量分量。
输出:: 返回值 | 分数 $vector.abs_min bs.out：离0最近的分量值。

示例：我想获取向量(1000, 2000, 3000)的最小分量：

# Define the vector
scoreboard players set $vector.abs_min.0 bs.in 1000
scoreboard players set $vector.abs_min.1 bs.in 2000
scoreboard players set $vector.abs_min.2 bs.in 3000

# Get the min component
function #bs.vector:abs_min

# Display the result
tellraw @a [{"text":" Min component: ","color":"dark_gray"},{"score":{"name":"$vector.abs_min","objective":"bs.out"},"color":"gold"}]

制作人员：Aksiome

3D基底旋转#

#bs.vector:basis_rot_3d {scaling:<value>}

获取传入参数向量在另一旋转基下的等效向量，可用于将绝对/相对坐标转换为局部坐标系中的位置。

输入:

分数 $vector.basis_rot_3d.pos.[0,1,2] bs.in：在起始基底中的向量坐标 $=(X,Y,Z)$。

分数 $vector.basis_rot_3d.rot.[0,1] bs.in：相对于起始基底的水平角 $=\phi$（沿 $=\hat{y}$ 轴）和垂直角 $=\theta$（沿 $=\hat{\phi}$ 轴）旋转（以度为单位）。

函数宏：

参数
- scaling: 应用于函数输入和输出的缩放系数。

输出:

分数 $vector.basis_rot_3d.[0,1,2] bs.out：在目标基底中的向量坐标 $=(X',Y',Z')$。

基底系统

此系统使用Minecraft坐标系。因此：

$\hat{y}$ 是垂直轴。
$\phi=0$（水平角的起点）是沿着 $\hat{z}$ 轴的。
$\theta=0$（垂直角的起点）在水平平面上。

示例：一个方块相对于我的位置在~2 ~5 ~10，我想获取这个位置的局部坐标（^? ^? ^?）：

# One time

# Relative coordinates (we multiply by 1000 to have more precision on the result, which will also be multiplied by 1000)
scoreboard players set $vector.basis_rot_3d.pos.0 bs.in 2000
scoreboard players set $vector.basis_rot_3d.pos.1 bs.in 5000
scoreboard players set $vector.basis_rot_3d.pos.2 bs.in 10000

# Difference between my rotation (= that of the coordinate grid ^X ^Y ^Z) and the rotation of the Minecraft blocks grid (~X ~Y ~Z)
function #bs.position:get_rot {scale:1000}
scoreboard players operation $vector.basis_rot_3d.rot.0 bs.in = @s bs.rot.h
scoreboard players operation $vector.basis_rot_3d.rot.1 bs.in = @s bs.rot.v

# Perform the basic rotation
function #bs.vector:basis_rot_3d {scaling:1000}

# See the result
tellraw @a [{"text": "X = ", "color": "dark_gray"},{"score":{"name":"$vector.basis_rot_3d.0", "objective": "bs.out"}, "color": "gold"},{"text":", Y = ", "color": "dark_gray"},{"score":{"name":"$vector.basis_rot_3d.1", "objective": "bs.out"},"color":"gold"},{"text":", Z = ","color":"dark_gray"},{"score":{"name":"$vector.basis_rot_3d.2","objective":"bs.out"},"color":"gold"}]

示例：我想要一个指向我正在看的方向的向量，但用相对坐标~X ~Y ~Z表示：

# Once

# Retrieve a vector ^ ^ ^1 corresponding to a vector directed according to the orientation of the entity (we multiply by 1000 to have more precision on the result, which will also be multiplied by 1000)
scoreboard players set $vector.basis_rot_3d.pos.0 bs.in 0
scoreboard players set $vector.basis_rot_3d.pos.1 bs.in 0
scoreboard players set $vector.basis_rot_3d.pos.2 bs.in 1000

# Get the orientation
function #bs.position:get_rot {scale:1000}
scoreboard players operation $vector.basis_rot_3d.rot.0 bs.in = @s bs.rot.h
scoreboard players operation $vector.basis_rot_3d.rot.1 bs.in = @s bs.rot.v

# Reversal of the orientation since we want to have the relative orientation of the game grid compared to the orientation of the player (unlike the previous example)
scoreboard players operation $vector.basis_rot_3d.rot.0 bs.in *= -1 bs.const
scoreboard players operation $vector.basis_rot_3d.rot.1 bs.in *= -1 bs.const

# Perform the basic rotation
function #bs.vector:basis_rot_3d {scaling:1000}

# See the result
tellraw @a [{"text": "X = ", "color": "dark_gray"},{"score":{"name":"$vector.basis_rot_3d.0", "objective": "bs.out"}, "color": "gold"},{"text":", Y = ", "color": "dark_gray"},{"score":{"name":"$vector.basis_rot_3d.1", "objective": "bs.out"},"color":"gold"},{"text":", Z = ","color":"dark_gray"},{"score":{"name":"$vector.basis_rot_3d.2","objective":"bs.out"},"color":"gold"}]

制作人员：Aksiome、Leirof

笛卡尔坐标转球坐标#

#bs.vector:cartesian_to_spherical {scaling:<value>}

将笛卡尔坐标转换为球坐标。

输入:

分数 $vector.cartesian_to_spherical.[0,1,2] bs.in：表示笛卡尔坐标 $=(X,Y,Z)$ 的向量。

函数宏：

参数
- scaling: 应用于函数输入和输出的缩放系数。

输出:

分数 $vector.cartesian_to_spherical.[0,1,2] bs.out：表示球坐标 $=(H,V,R)$ 的向量。

球坐标

此系统返回的是非常规的球坐标。

$H$（水平角）是沿着 $\hat{z}$ 轴的。
$V$（垂直角）在水平平面上。
$R$ 是径向距离。

示例：我想将向量(1000, 2000, 3000)转换为球坐标：

# Define the vector
scoreboard players set $vector.cartesian_to_spherical.0 bs.in 1000
scoreboard players set $vector.cartesian_to_spherical.1 bs.in 2000
scoreboard players set $vector.cartesian_to_spherical.2 bs.in 3000

# Perform the conversion
function #bs.vector:cartesian_to_spherical {scaling:1000}

# Display the result
tellraw @a [{"text":"Spherical coordinates: ","color":"dark_gray"},{"score":{"name":"$vector.cartesian_to_spherical.0","objective":"bs.out"},"color":"gold"},{"text":"°, ","color":"gold"},{"score":{"name":"$vector.cartesian_to_spherical.1","objective":"bs.out"},"color":"gold"},{"text":"°, ","color":"gold"},{"score":{"name":"$vector.cartesian_to_spherical.2","objective":"bs.out"},"color":"gold"}]

制作人员：Aksiome

叉乘#

#bs.vector:cross_product {scaling:<value>}

计算 $u$ 和 $v$ 的叉乘。

输入:

分数 $vector.cross_product.u.[0,1,2] bs.in：第一个向量分量。

分数 $vector.cross_product.v.[0,1,2] bs.in：第二个向量分量。

函数宏：

参数
- scaling: 应用于函数输入和输出的缩放系数。

输出:

分数 $vector.cross_product.[0,1,2] bs.out：操作结果 $=u \times v$。

示例：我想对 $u=(1,2,3)$ 和 $v=(4,5,6)$ 计算 $u \times v$：

# Define the vectors
scoreboard players set $vector.cross_product.u.0 bs.in 100
scoreboard players set $vector.cross_product.u.1 bs.in 200
scoreboard players set $vector.cross_product.u.2 bs.in 300

scoreboard players set $vector.cross_product.v.0 bs.in 400
scoreboard players set $vector.cross_product.v.1 bs.in 500
scoreboard players set $vector.cross_product.v.2 bs.in 600

# Perform the operation
function #bs.vector:cross_product {scaling:100}

# Display the result
tellraw @a [{"text":"Cross product: ","color":"dark_gray"},{"score":{"name":"$vector.cross_product.0","objective":"bs.out"},"color":"gold"},{"text":", ","color":"gold"},{"score":{"name":"$vector.cross_product.1","objective":"bs.out"},"color":"gold"},{"text":", ","color":"gold"},{"score":{"name":"$vector.cross_product.2","objective":"bs.out"},"color":"gold"}]

制作人员：Aksiome、Majoras16

点乘#

#bs.vector:dot_product {scaling:<value>}

计算 $u$ 和 $v$ 的点乘。

输入:

分数 $vector.dot_product.u.[0,1,2] bs.in：第一个向量分量。

分数 $vector.dot_product.v.[0,1,2] bs.in：第二个向量分量。

函数宏：

参数
- scaling: 应用于函数输入和输出的缩放系数。

输出:

分数 $vector.dot_product bs.out：运算结果 $=u · v$。

示例：我想对 $u=(1,2,3)$ 和 $v=(4,5,6)$ 计算 $u \cdot v$：

# Define the vectors
scoreboard players set $vector.dot_product.u.0 bs.in 100
scoreboard players set $vector.dot_product.u.1 bs.in 200
scoreboard players set $vector.dot_product.u.2 bs.in 300

scoreboard players set $vector.dot_product.v.0 bs.in 400
scoreboard players set $vector.dot_product.v.1 bs.in 500
scoreboard players set $vector.dot_product.v.2 bs.in 600

# Perform the operation
function #bs.vector:dot_product {scaling:100}

# Display the result
tellraw @a [{"text":"Dot product: ","color":"dark_gray"},{"score":{"name":"$vector.dot_product","objective":"bs.out"},"color":"gold"}]

制作人员：Aksiome、Majoras16

长度#

长度

#bs.vector:length

计算向量的范数。

输入:: 分数 $vector.length.[0,1,2] bs.in：向量分量。
输出:: 返回值 | 分数 $vector.length bs.out：向量长度。

示例：计算向量的长度：

scoreboard players set $vector.length.0 bs.in 1000
scoreboard players set $vector.length.1 bs.in 2000
scoreboard players set $vector.length.2 bs.in 3000

function #bs.vector:length

# Display the result
tellraw @a [{"text":" Vector length: ","color":"dark_gray"},{"score":{"name":"$vector.length","objective":"bs.out"}}]

性能提示

为了最小化性能影响，我们建议尽可能使用 length_squared 函数代替此函数。计算向量的长度需要进行平方根运算，这在计算上很耗费资源，特别是在 Minecraft 中。

length_squared 在以下情况下可以有效使用：

当比较向量长度与给定值时，手动计算给定值的平方并与 length_squared 的结果进行比较。
当比较两个向量的长度时，比较它们的 length_squared 结果而不是计算它们的实际长度。

平方长度

#bs.vector:length_squared {scaling:<value>}

计算向量的范数的平方。

输入:

分数 $vector.length_squared.[0,1,2] bs.in：向量分量。

函数宏：

参数
- scaling: 应用于函数输入和输出的缩放系数。

输出:

返回值 | 分数 $vector.length_squared bs.out：向量的长度的平方。

示例：计算向量的长度的平方：

scoreboard players set $vector.length_squared.0 bs.in 1000
scoreboard players set $vector.length_squared.1 bs.in 2000
scoreboard players set $vector.length_squared.2 bs.in 3000

function #bs.vector:length_squared

# Display the result
tellraw @a [{"text":" Vector length squared: ","color":"dark_gray"},{"score":{"name":"$vector.length_squared","objective":"bs.out"}}]

制作人员：Aksiome、Leirof

归一化#

范数

#bs.vector:normalize {scale:<scaling>}

将向量的长度缩放到指定值，并保持其方向不变。

输入:

分数 $vector.normalize.[0,1,2] bs.in：向量分量。

函数宏：

参数
- scale: 应用于函数输出的缩放系数。

输出:

分数 $vector.normalize.[0,1,2] bs.out：归一化后的向量分量。

性能提示

向量归一化并不总是需要使用长度。通常可以使用 normalize_max_component 函数代替。虽然这种方法不会归一化长度，但它简化了操作并提高了性能。

示例：将向量(1000, 2000, 3000)按比例1000归一化：

# Define the vector
scoreboard players set $vector.normalize.0 bs.in 1000
scoreboard players set $vector.normalize.1 bs.in 2000
scoreboard players set $vector.normalize.2 bs.in 3000

# Perform the normalization
function #bs.vector:normalize {scale:1000}

# Display the result
tellraw @a [{"text":"Normalized vector: ","color":"dark_gray"},{"score":{"name":"$vector.normalize.0","objective":"bs.out"},"color":"gold"},{"text":", ","color":"gold"},{"score":{"name":"$vector.normalize.1","objective":"bs.out"},"color":"gold"},{"text":", ","color":"gold"},{"score":{"name":"$vector.normalize.2","objective":"bs.out"},"color":"gold"}]

最大分量

#bs.vector:normalize_max_component {scale:<scaling>}

将向量的所有分量除以最大分量值，并保持其方向不变。

输入:

分数 $vector.normalize_max_component.[0,1,2] bs.in：向量分量。

函数宏：

参数
- scale: 应用于函数输出的缩放系数。

输出:

分数 $vector.normalize_max_component.[0,1,2] bs.out：归一化后的向量分量。

分数 $vector.normalize_max_component.factor bs.out：归一化因子。

示例：将向量(1000, 2000, 3000)按比例1000归一化：

# Define the vector
scoreboard players set $vector.normalize_max_component.0 bs.in 1000
scoreboard players set $vector.normalize_max_component.1 bs.in 2000
scoreboard players set $vector.normalize_max_component.2 bs.in 3000

# Perform the fast normalization
function #bs.vector:normalize_max_component {scale:1000}

# Display the result
tellraw @a [{"text":"Normalized vector: ","color":"dark_gray"},{"score":{"name":"$vector.normalize_max_component.0","objective":"bs.out"},"color":"gold"},{"text":", ","color":"gold"},{"score":{"name":"$vector.normalize_max_component.1","objective":"bs.out"},"color":"gold"},{"text":", ","color":"gold"},{"score":{"name":"$vector.normalize_max_component.2","objective":"bs.out"},"color":"gold"}]

制作人员：Aksiome、Leirof

球坐标转笛卡尔坐标#

#bs.vector:spherical_to_cartesian {scaling:<value>}

将球坐标转换为笛卡尔坐标。

输入:

分数 $vector.spherical_to_cartesian.[0,1,2] bs.in：表示球坐标 $=(H,V,R)$ 的向量。

函数宏：

参数
- scaling: 应用于函数输入和输出的缩放系数。

输出:

分数 $vector.spherical_to_cartesian.[0,1,2] bs.out：表示笛卡尔坐标 $=(X,Y,Z)$ 的向量。

球坐标

此系统使用非常规的球坐标。

$H$（水平角）是沿着 $\hat{z}$ 轴的。
$V$（垂直角）在水平平面上。
$R$ 是径向距离。

示例：我想将球坐标 $(45°, 30°, 1)$ 转换为笛卡尔坐标：

# Define the spherical coordinates
scoreboard players set $vector.spherical_to_cartesian.0 bs.in 45000
scoreboard players set $vector.spherical_to_cartesian.1 bs.in 30000
scoreboard players set $vector.spherical_to_cartesian.2 bs.in 1000

# Perform the conversion
function #bs.vector:spherical_to_cartesian {scaling:1000}

# Display the result
tellraw @a [{"text":"Cartesian coordinates: ","color":"dark_gray"},{"score":{"name":"$vector.spherical_to_cartesian.0","objective":"bs.out"},"color":"gold"},{"text":", ","color":"gold"},{"score":{"name":"$vector.spherical_to_cartesian.1","objective":"bs.out"},"color":"gold"},{"text":", ","color":"gold"},{"score":{"name":"$vector.spherical_to_cartesian.2","objective":"bs.out"},"color":"gold"}]

制作人员：Aksiome
